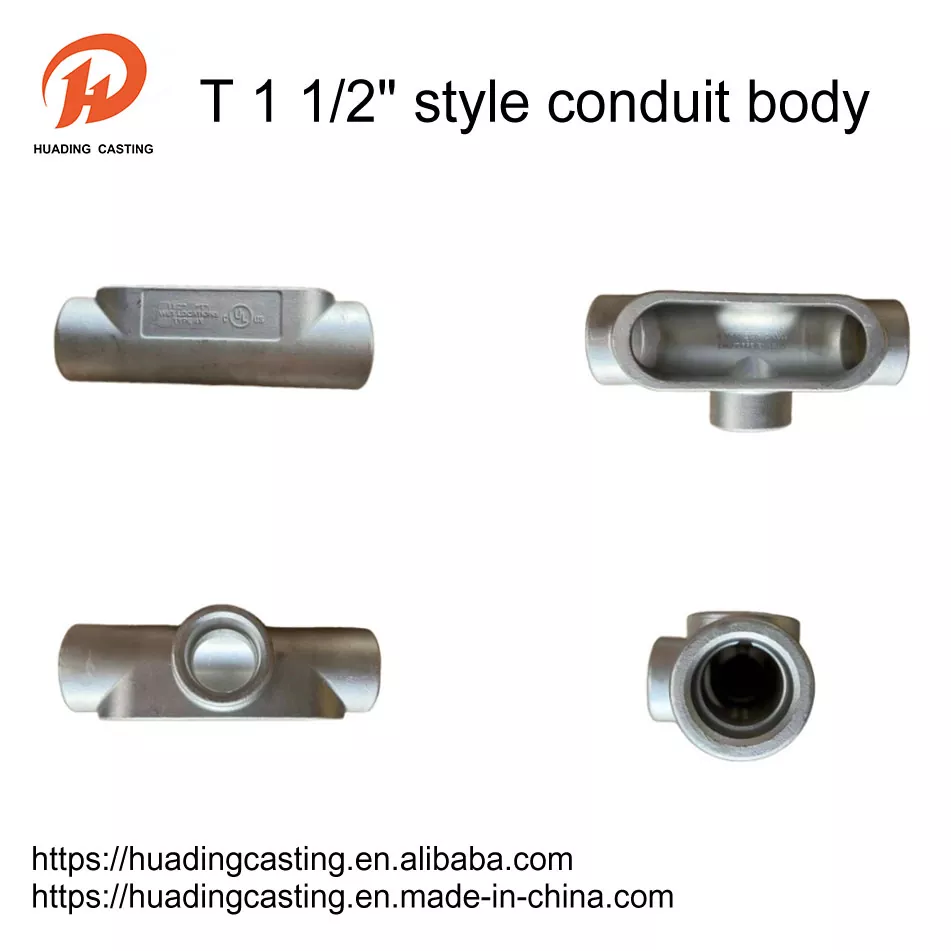

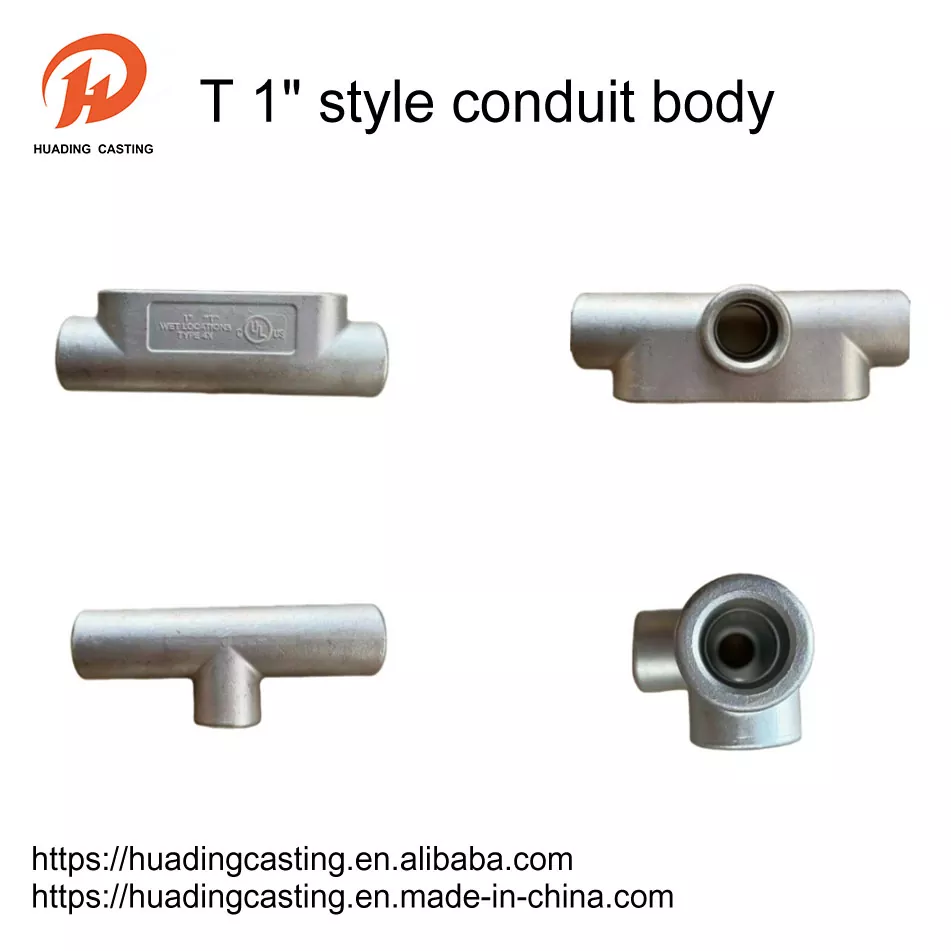

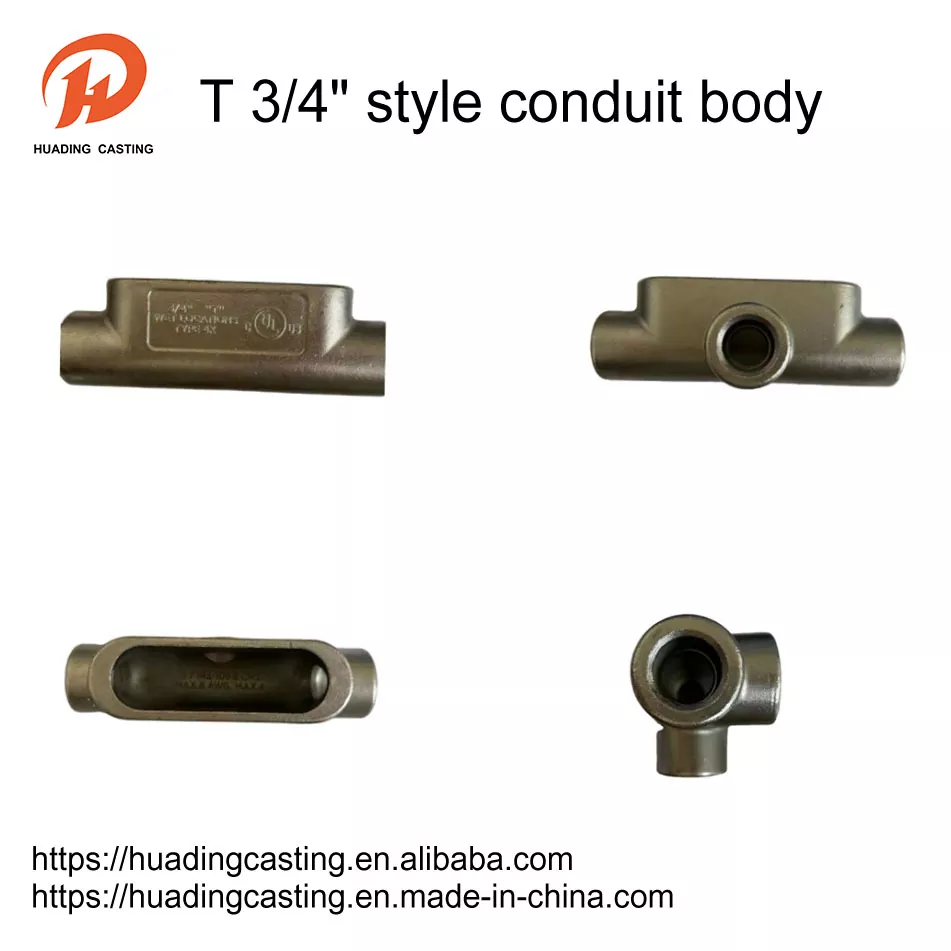

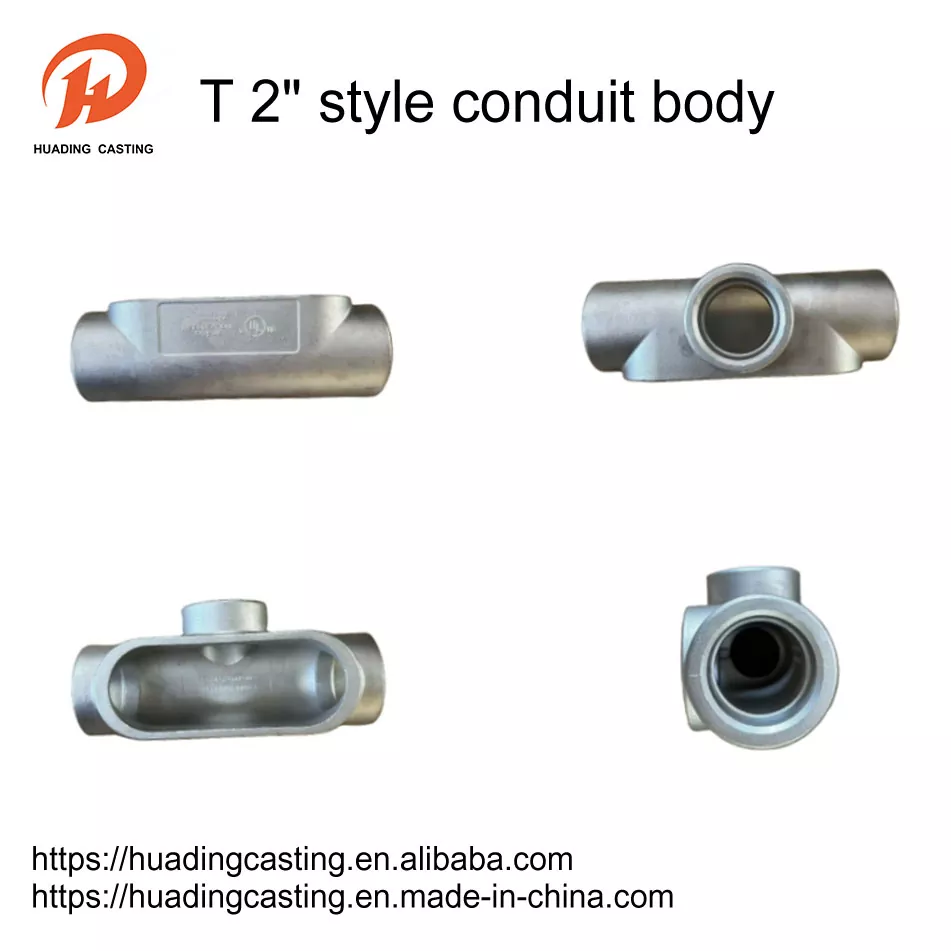

T Styl Conduit Body

T -styl -geleidingsliggaam dien as verbindings vir skroefdraadleidings, veral as die elektriese baan van rigting moet verander. Dit het verwyderbare, pakke -omslae wat 'n waterdigte seël verseker, terwyl dit ook maklike toegang bied vir aktiwiteite soos om ekstra drade, inspeksies en roetine -instandhouding te trek. Hierdie leidingliggame is versoenbaar met pype wat wissel van 3/4 "tot 2" en is van AISI 316L roesvrye staal gebou.

Stuur navraag

Produk Beskrywing

Application:

T style conduit body is utilized to connect with threaded rigid or EMT conduits whenever a directional change is necessary. They feature a removable cover and gasket, facilitating easy wire pulling. These bodies are frequently employed as cost-effective convenience boxes when additional space for wires is required.

Advantages:

T style conduit bodies offer time and cost savings by avoiding the expensive process of bending large conduits to alter their direction. They enable installers to achieve smooth wire bends effortlessly. Featuring a powder-coated finish and a watertight gasket, they ensure a durable and weather-resistant installation. Moreover, their detachable cover facilitates straightforward and convenient maintenance as well as future wire pulling tasks.

Product Parameter

Surface treatment	Electrolytic polishing
Material	AISI 316L
Model	3/4'',1'',1 1/2'',2''
Technics	Casting
Feature	Malleable cover, fire resistant gaskets, stainless steel screws
Weight	0.97kg/1.23kg/2.39kg/3.51kg
